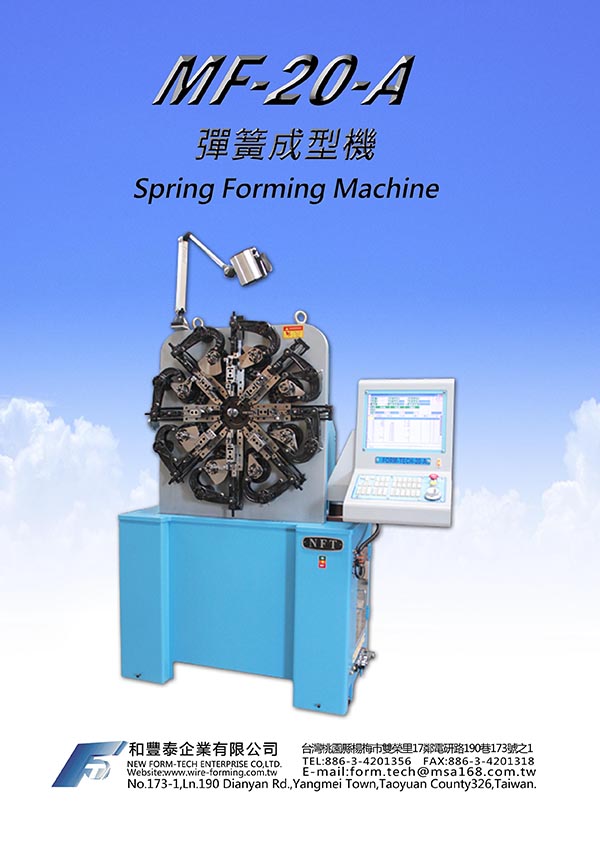

Features of MF series multiaxial machine:

1. Self-developed Industrial multiaxial controller which can support multinational language interface, customers can translate English version interface data to their Own language first to allow us to input the controller.
2. Easy and friendly operation of touch monitor interface, monoitor will appears alarm message and solution automatically which could support mouse, keyboard, PC and MPG and also has test and teach modes to make programs edition easier.
3. It can use USB to save programs and parameters for back up and system recover conveniently.
4. Operation is totally camless, slides connect to servo motors directly and the max. slides stoke is 100mm. Stable mechanical structures to ensure the stability of high speed operation.
5. Stronger and more stable new type structure of rotational quill.
6. Single and duel coiling axis to support possibility of processing and enable faster and more efficient forming.
7. Servo slides are standard equipment to control spring OD.
8. Support the alarm system of disconnection and abnormal inspection of wire decoiler.
9. Optional device of remote monitoring to diagnose and trouble shooting which is quite convenient and efficient.
